Bioscience
Slot-in Sensor Jig
Project Overview
Cleanroom efficiency and ergonomics

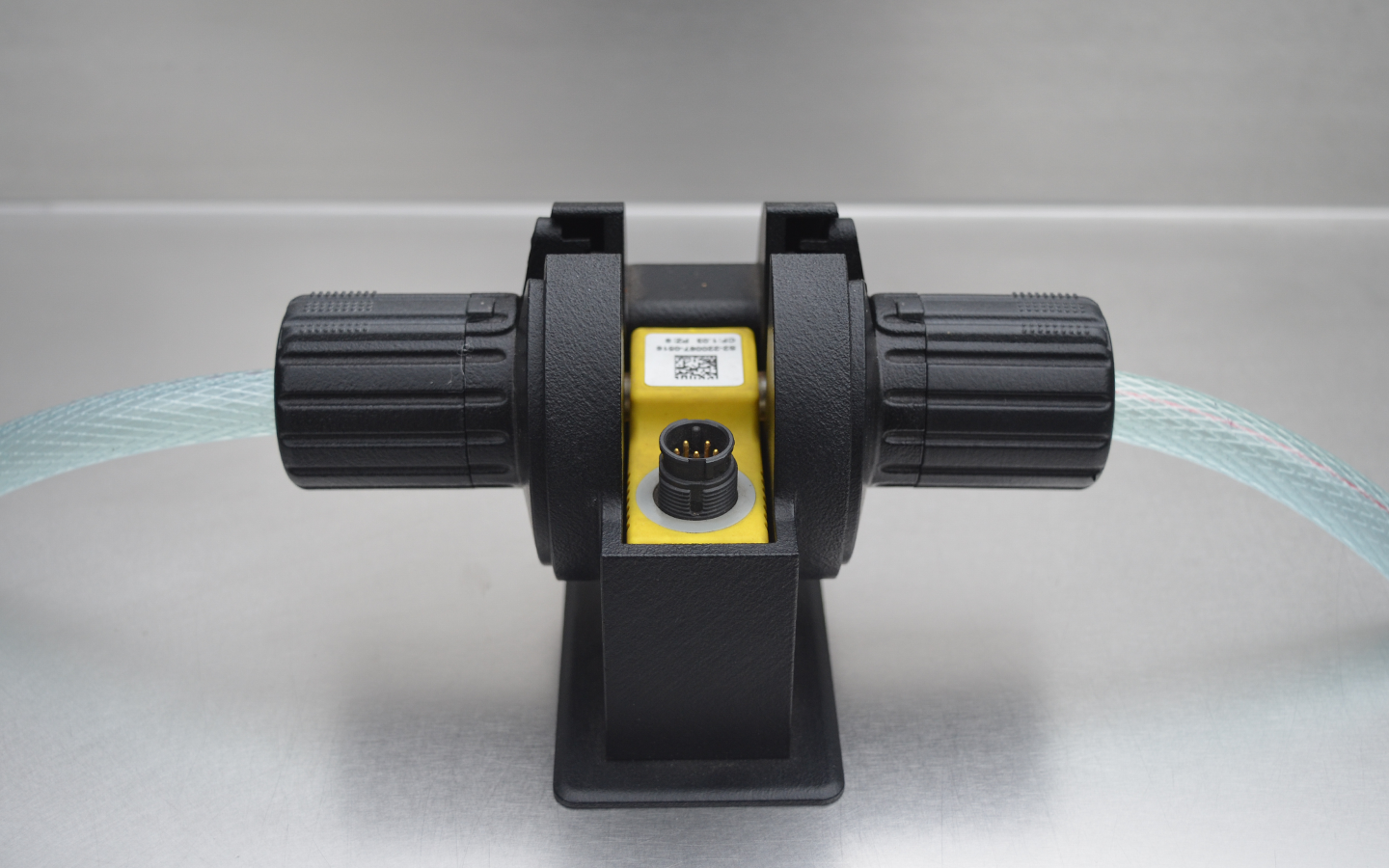

Rotite collaborated with a leading bioscience technology firm to develop a slot-in calibration fixture for pressure-cycle testing. This streamlines setup, improving repeatability, and reducing operator error. The solution combined Rotite’s patented locking geometry with HP Multi Jet Fusion additive manufacturing for rapid development and cleanroom compatibility.
Solution

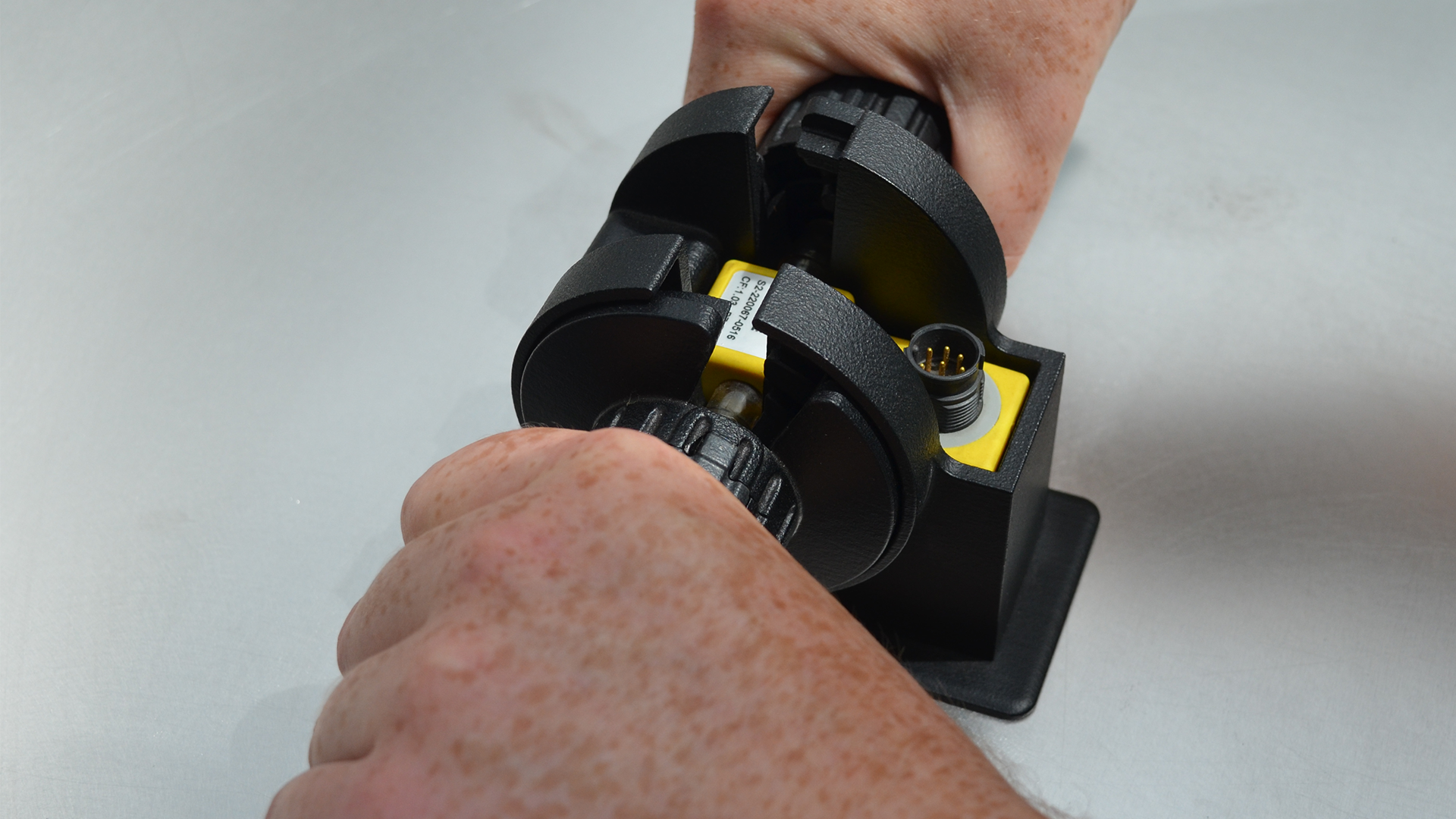

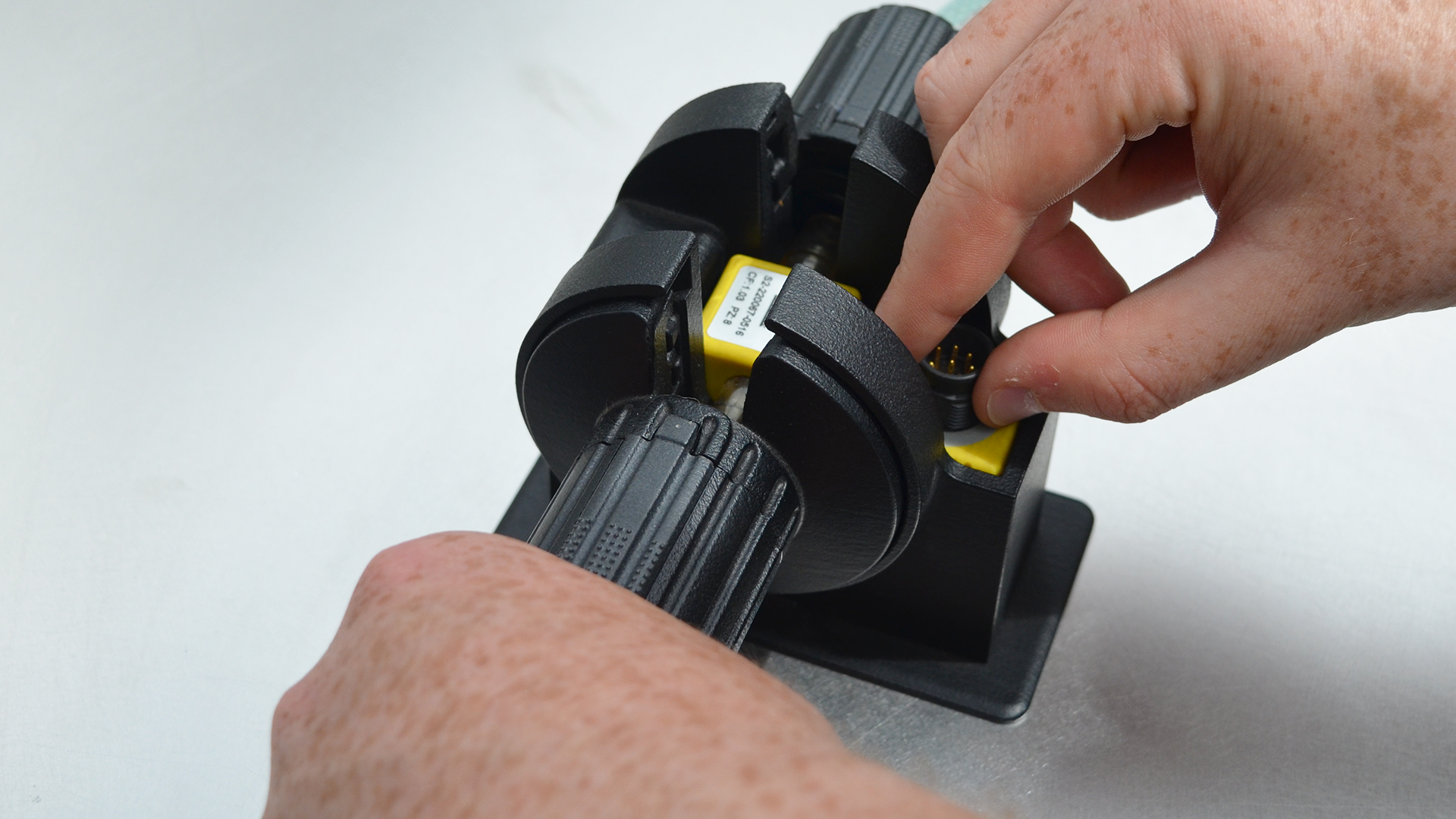

Quick Fastening – Just place the sensor in the jig, and twist
Tool-Free Design – Speeds up productivity of rapid test cycles
Cleanroom-Compatible – Seamless geometry with smooth, hygienic surfaces
MJF Additive Manufacturing – High-precision polymer parts, produced without tooling
Vapour-Smooth Finish – For easy cleaning
Impact
Faster Setup – Reduced calibration cycle times
Improved Repeatability – Consistent alignment improves test outcomes
Operator Efficiency – Ergonomic, error-proof handling
Pressure-Tight Performance – Passed 30+ psi pressure testing
Scalable & Cleanroom Ready – Rapid production-ready parts via 3D printing
